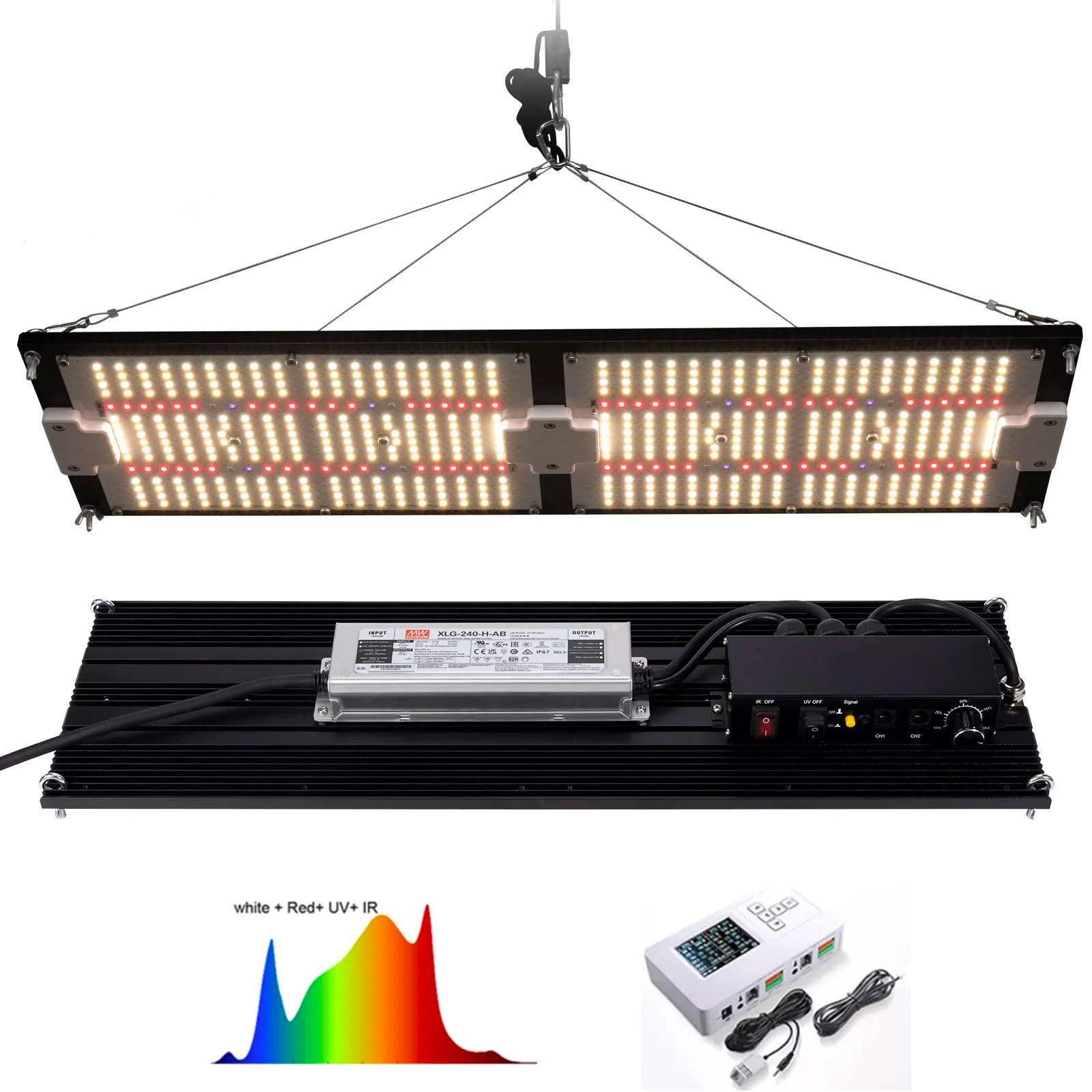

Affordable Samsung Full Spectrum Durability, Long Lifespan, And Low Heat Emission Customized Grow Led Lights Panel

Category

Product Description

Model No

ACE-GL-150W

ACE-GL-240W

ACE-GL-320W

Lamp Luminous Efficiency(lm/w)

160

160

160

Lamp Luminous

24000

3840051200

Support Dimmer

0-10V dimming

0-10V dimming

0-10V dimming

Driver Brand

SOSEN/MEANWELL/
 INVENTRONICS

SOSEN/MEANWELL/ INVENTRONICS

SOSEN/MEANWELL/ INVENTRONICS

IP Rating

waterproof

waterproof

waterproof

Lighting solutions

Lighting and circuitry design,
DIALux evo

Lighting and circuitry design, DIALux evo

Lighting and circuitry design, DIALux evo

CR

90

90

90

Feature

UV and IR are controlled separatelly

UV and IR are controlled separatelly

UV and IR are controlled separatelly

PF

0.95

0.95

0.95

Spectrum

Full spectrum, White + Red + IR + UV

Full spectrum, White + Red + IR + UV

Full spectrum, White + Red + IR + UV

Led chip

Samsung lm301H+660nm+730nm(IR)+395nm(UV),

Samsung lm301H+660nm+730nm(IR)+395nm(UV),

Samsung lm301H+660nm+730nm(IR)+395nm(UV),

PPFDμmol/(m2·s)

400-700

400-700, 1500-1600

400-700, 1500-1600

Luminous Efficacy(μmol/J)

2.8

2.8

2.8

Input Voltage(V)

AC100-277V

AC100-277V

AC100-277V

Light Output(μmol/s)

38400

1500

38400

Service life

>50000H

>50000H

>50000H

Operating Temperature Range

0°C ~45°C

0°C ~45°C

0°C ~45°C

Material

Aluminum

Aluminum

Aluminum

Application

Seed Starting, BLOOM, VEG

Seed Starting, BLOOM, VEG

Seed Starting, BLOOM, VEG

Original Samsung led chips

Equiped with samsung led, there are lm301h, lm301h evo, lm301b and lm281b for option, white light led help indoor farm owers to maximize plant growth and quality, as well as their profits.

UV IR Seperately Control– Different grow stage need different light, UV & IR can be controlled ON/OFF by switch, choose either UV or IR During plant growth. IR730nm helps improve stem growth, as well as help increase the number of flowers and fruits; and UV395nm is good for root mass & branching.

0/10V Dimming –  To have the perfect light intensity during all stages of plant growth, easy dimming, makes it much simplier for cultivation.

Full Spectrum

Full spectrum grow light panel, White Led(Blue, Green, Yellow) and Red Led(660nm and 730nm) can provide optimal lighting to make plants grow better. It’s a perfect supplementry led lightings for indoor plants cultivation.

RJ14 for daisy chain connection optional

Support the external RJ14 controller, setting through APP by phone, environment temperature and humidity of greenhouse can be monitored by the controller, Auto shutdown at Temp. setting. Power cord we provide not only can be used for the wall socket but for multiple grow light connection. Connect multiple lights together to keep the grow space organized and avoid the need for excessive wiring.
