led tennis court lights sports lighting fixtures



The luminous effect of our tennis court has reached 170lm/w-200lm/w





The more uniform the light distribution,
the better the illuminance and the more comfortable the visual experience.





Higher the color rendering index, the better the color rendering of the light source and the stronger the ability to restore the color of the object







Waterproof level has reached IP67.
For outdoor tennis courts, there is no need to worry about water ingress



save our customers 50%-70% of energy consumption





seven-year warranty
Enhance the service life of tennis court lights and reduce the construction cost of tennis courts

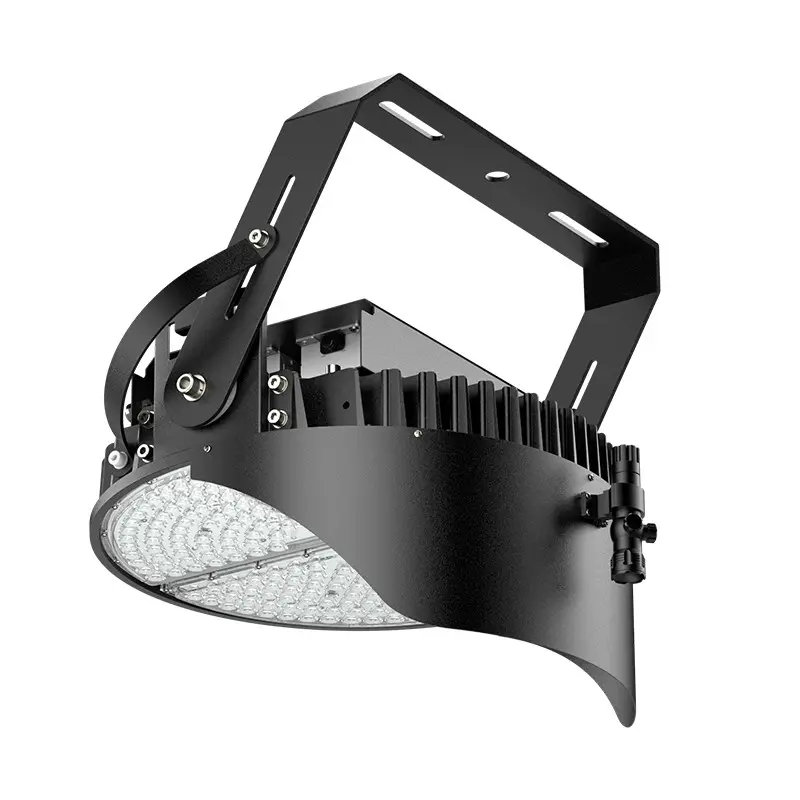

Specification:
Driver: Meanwell HBG
Input Voltage Range: 100-277VAC (480VAC optional)
Surge Protection: Separate 10KV surge protection module (standard)
Frequency: 50/60Hz
Shade/Reflector: Included (Dark Sky Compliant)
Housing Color Options: Black or Brown
Power Factor: >0.91
Maximum THD: ≤16%

Dimensions & Weight:
600W: 35 lbs | 360mm Round / 14″ Diameter

800W: 60 lbs | 460mm Round / 18″ Diameter

1000W: 72 lbs | 521mm Round / 21″ Diameter
Note: Detailed dimensions available in product images.
Beam Angle: 12°-60° (customizable with specified lens at order)
Dimmable: 0-10V Dimming Supported
Color Rendering Index (CRI): ≥80
Correlated Color Temperature (CCT): 5000K Standard (4000K, 5700K optional)
Lens Material: Optical-Grade Polycarbonate (High Focus, Low Glare)

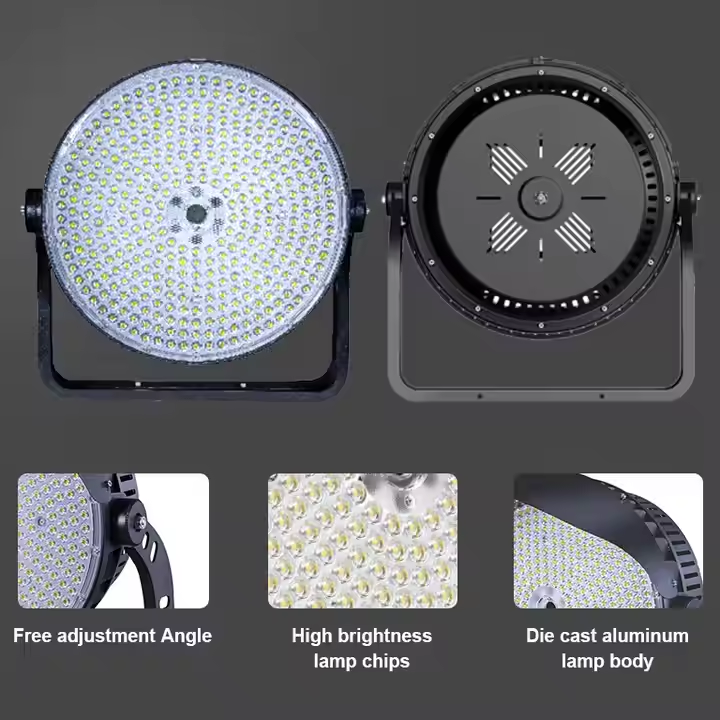

Housing Material: Die-Cast Aluminum
Ingress Protection: IP65 Outdoor Waterproof Rating

Key Highlights:

DLC Premium 4.3 Certification ensures eligibility for maximum utility rebates.

Modular Surge Protection (10KV) enhances durability in harsh environments.

Wide CCT Range (4000K-5700K) for customizable lighting atmospheres.

Flexible Beam Angles (12°-60°) tailored to specific field requirements.

Advantage

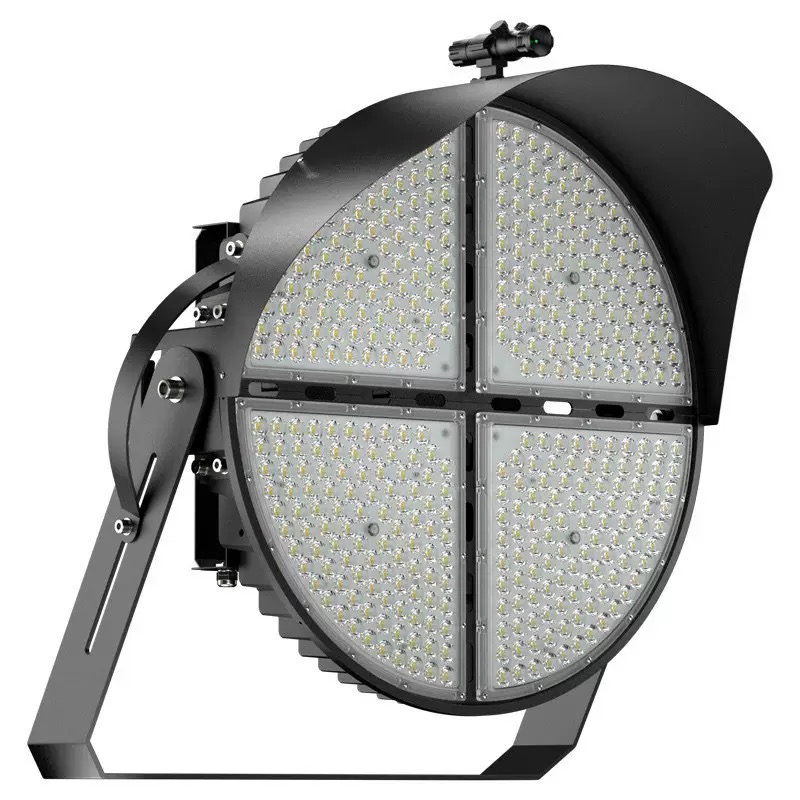

  1. Ultra-High Luminous Efficiency
    Delivers 170 lm/W(can be customized) efficacy for exceptional brightness-to-power ratio.

  2. Extreme Wind Resistance
    Beaufort Scale 17-rated aerodynamic design withstands extreme weather conditions through optimized structural engineering.

  3. Precision Beam Customization
    Adjustable beam angles: 15°/30°/45°/60°/T2/T3S configurations.
    Laser-guided alignment system ensures ±0.5° beam accuracy.

  4. Advanced Thermal Regulation

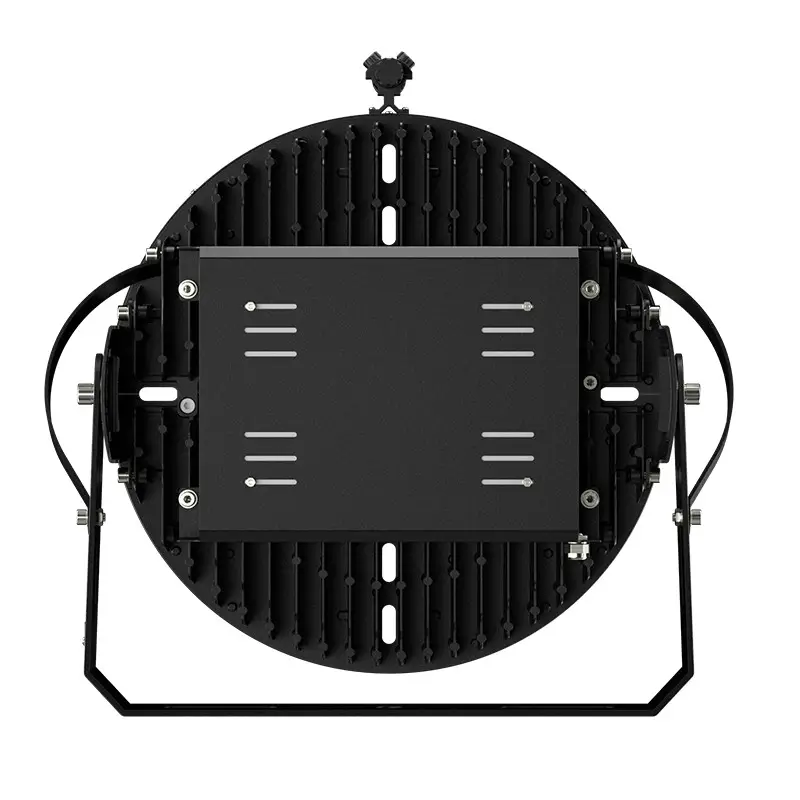

    Multi-directional air convection radiator enables 360° airflow, achieving 8.2°C/W thermal resistance for 50,000-hour LED lifespan.

  5. Military-Grade Environmental Protection
    IP67-certified seals with silicone rubber gaskets:

    • Blocks particulate ingress (tested to IEC 60529)

    • Submersion-proof up to 1m depth for 30 minutes

  6. Smart Wireless Control
    Zigbee 3.0-enabled system supports:

    • Real-time dimming (0-100%) & CCT tuning (2700K-6500K)

    • Grouped fixture management via mobile app

    • Energy consumption monitoring (±1% accuracy)

  7. Optimized Installation Efficiency

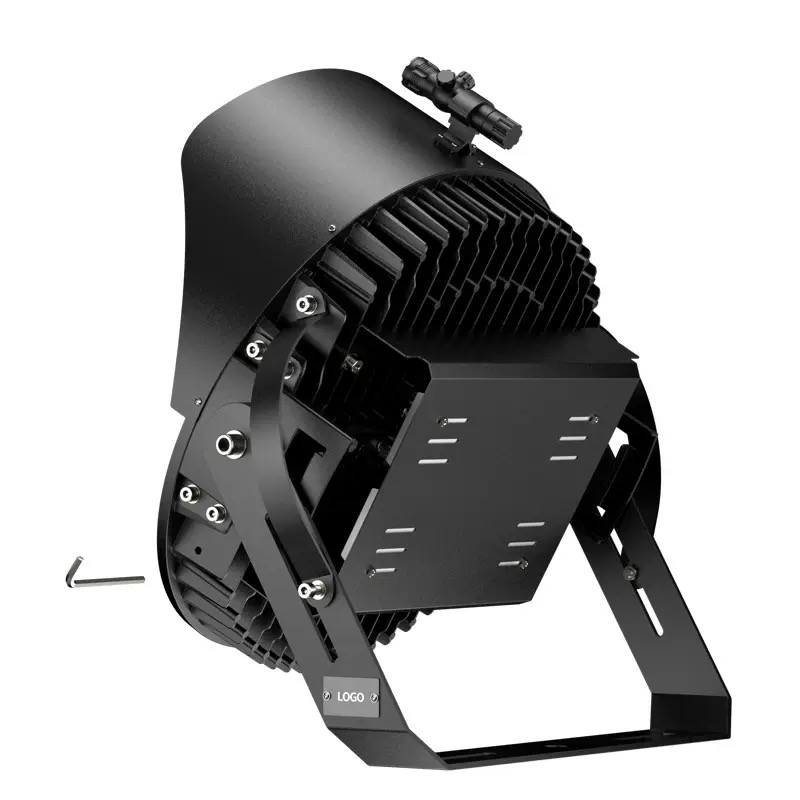

    Integrated Class II laser alignment reduces commissioning time by 60% through:

    • Projected beam boundary visualization

    • Auto-overlap calculation for array layouts

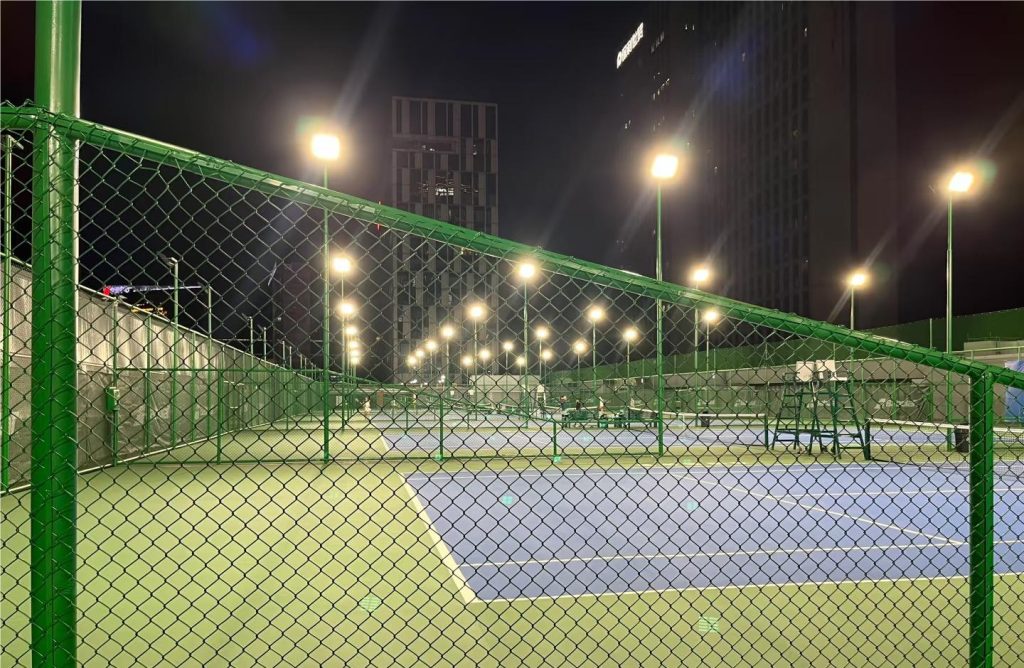

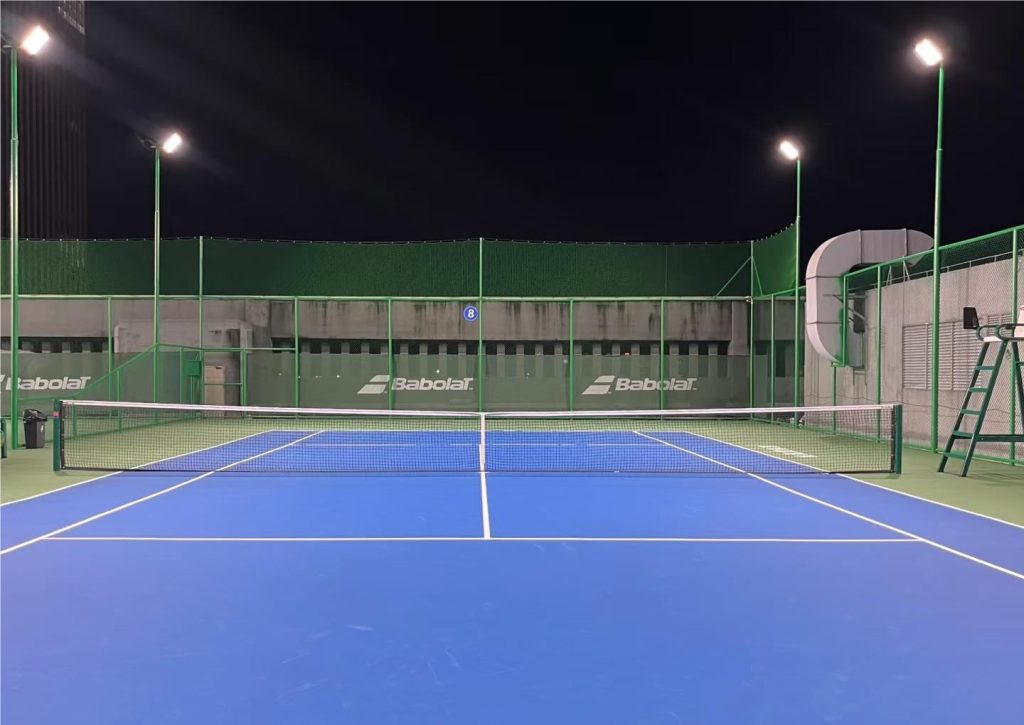

The four-pole lighting layout on both sides is adopted, with an installation height of 6 meters. Each pole is equipped with 3set 200W court lights, and the average illuminance of the field is 354Lux. If the budget is sufficient, it is recommended to install six poles on both sides, with an installation height of 8 to 10 meters. This not only ensures more uniform illumination but also avoids glare issues, providing players with a better sports experience!

However, when choosing lighting fixtures, factors such as energy consumption and environmental protection also need to be taken into consideration. With the development of LED technology, LED lighting fixtures have gradually become a more energy-efficient and longer-lasting choice. The power of LED lamps is relatively low, but their brightness and illuminance can meet the requirements of outdoor tennis courts. 💡
